Students Will:

  • Learn About Closed-Loop Control
  • Experiment with Manual & Auto Tuning of a Set-Point
  • Gain Hands-on Experience with Proportional, Integral & Derivative Control P.I.D.
  • Program & Troubleshoot Ladder Logic & Structured Text Code
  • Calibrate a Laser Based Distance Measuring Sensor
  • Work with a 3-Phase motor, Variable Frequency Drive, Industrial PLC, & HMI

Click image to enlarge

Includes a modular 581-page curriculum, preparing students to tackle real-world automation

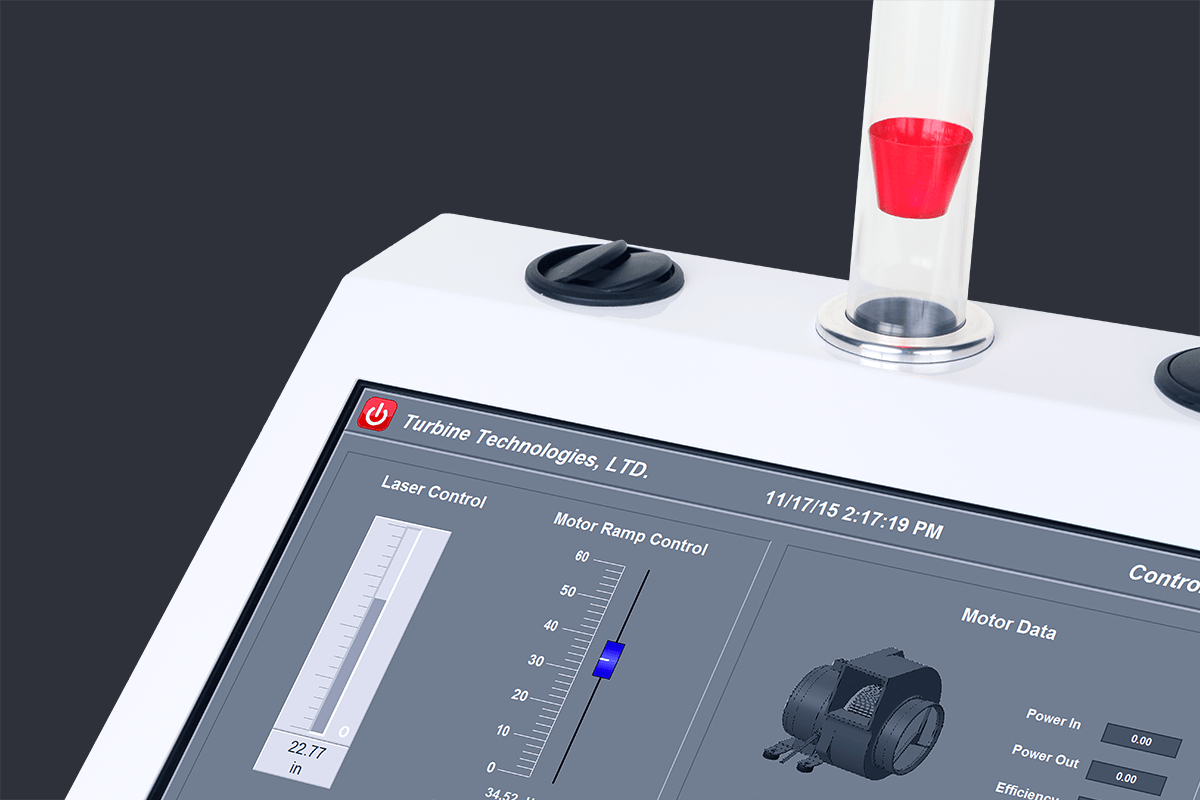

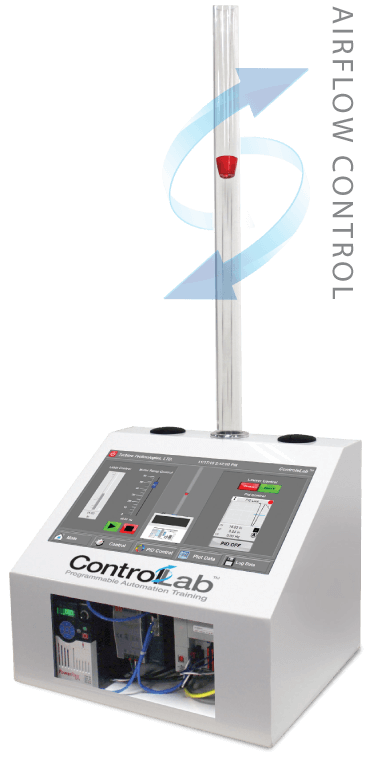

Students utilize airflow to control the positioning of an aerodynamic float.

The float represents a control dynamic that is analogous to many real world scenarios, such as an automobile's cruise control, temperature control, autopilot set-point capture, or a buildings HVAC control.The float is a very dynamic and visual cue as to the effectiveness of proper tuning.

The on-board programmable automation controller is Rockwell Automation's latest Logix device. Topics including Sensors, Control Loops,  Ladder Logic Programming, Industrial Ethernet, HMI, Networking, lock-out/tag outs, and enhanced PID tuning are all explored within the included curriculum.

ControlsLabTM comes equipped with pre-installed Rockwell Automation programming software (FactoryTalk View ME and Studio 5000) and allows students to devise real-world, custom industrial process scenarios.  No additional hardware or software is required.

  Click for printable brochure

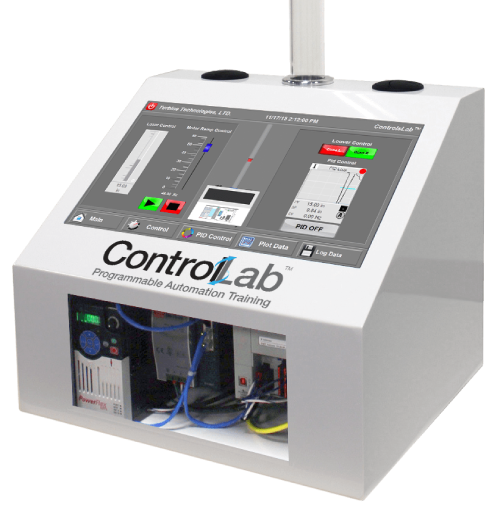

This affordable, yet turnkey system consists of the following primary components:

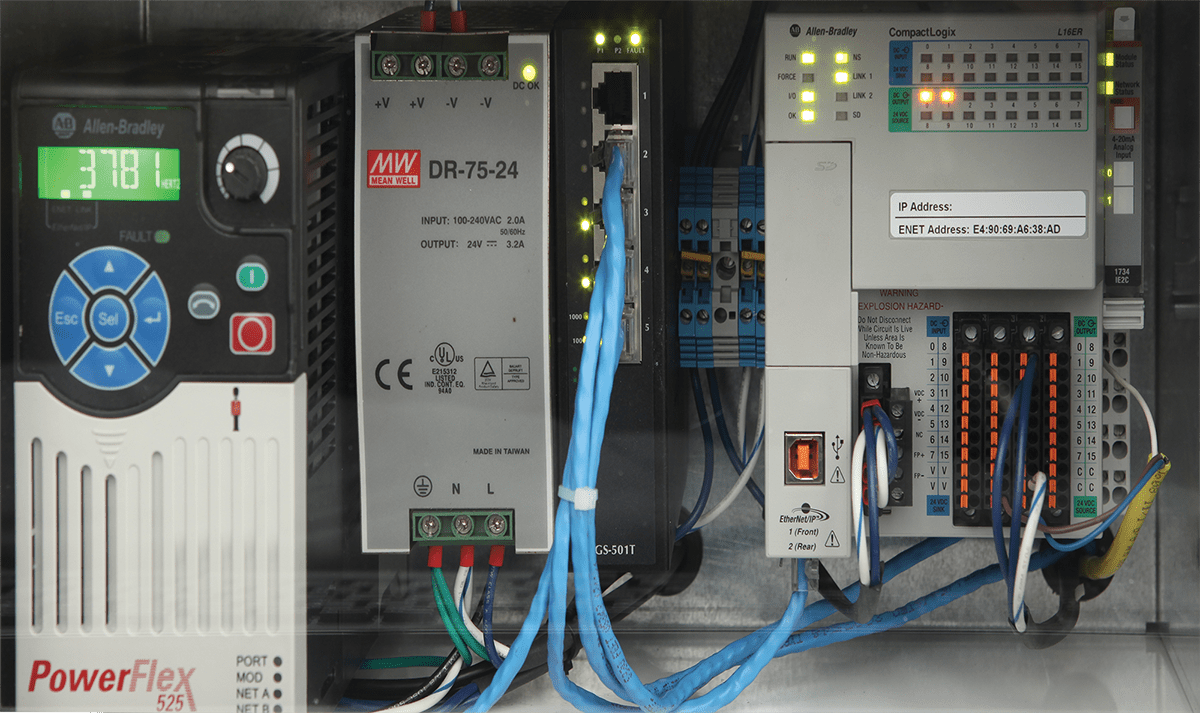

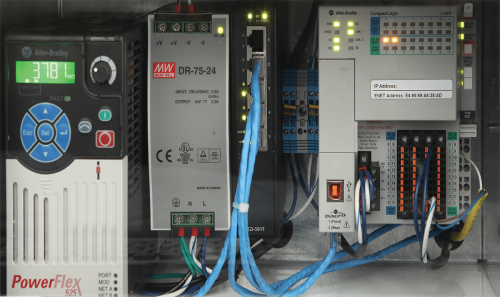

Programmable Process Automation Controller (PAC) Ladder logic with PIDE Autotune, alarms, lock-out tag out, etc.

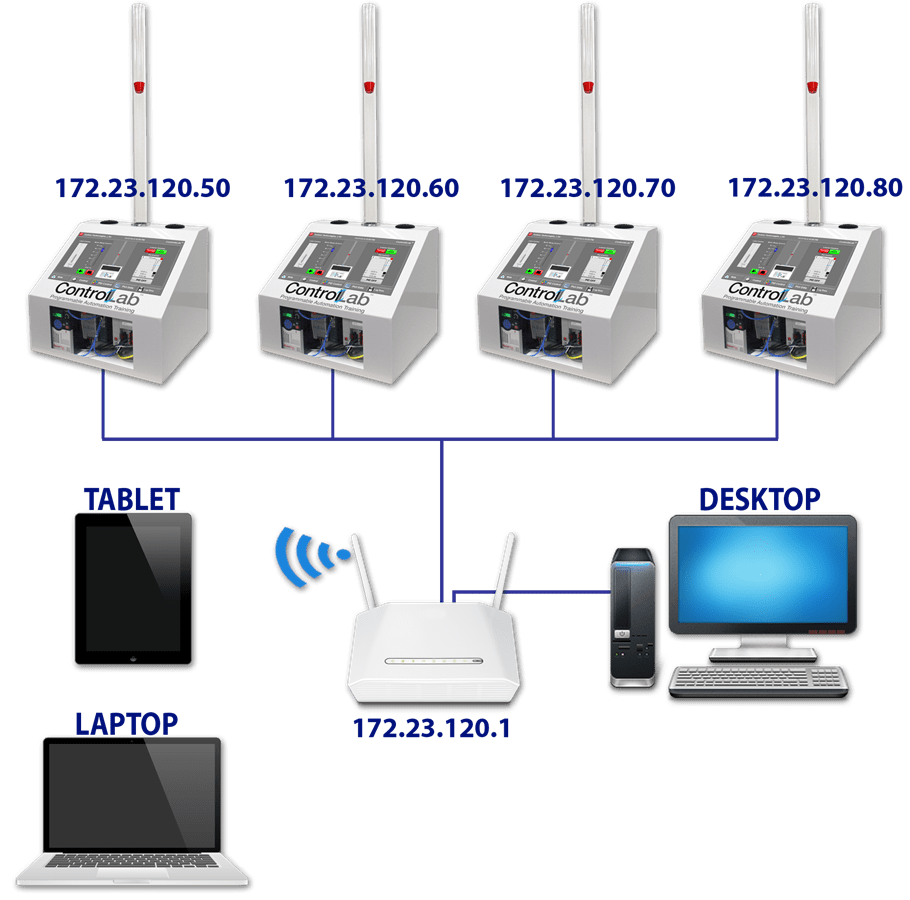

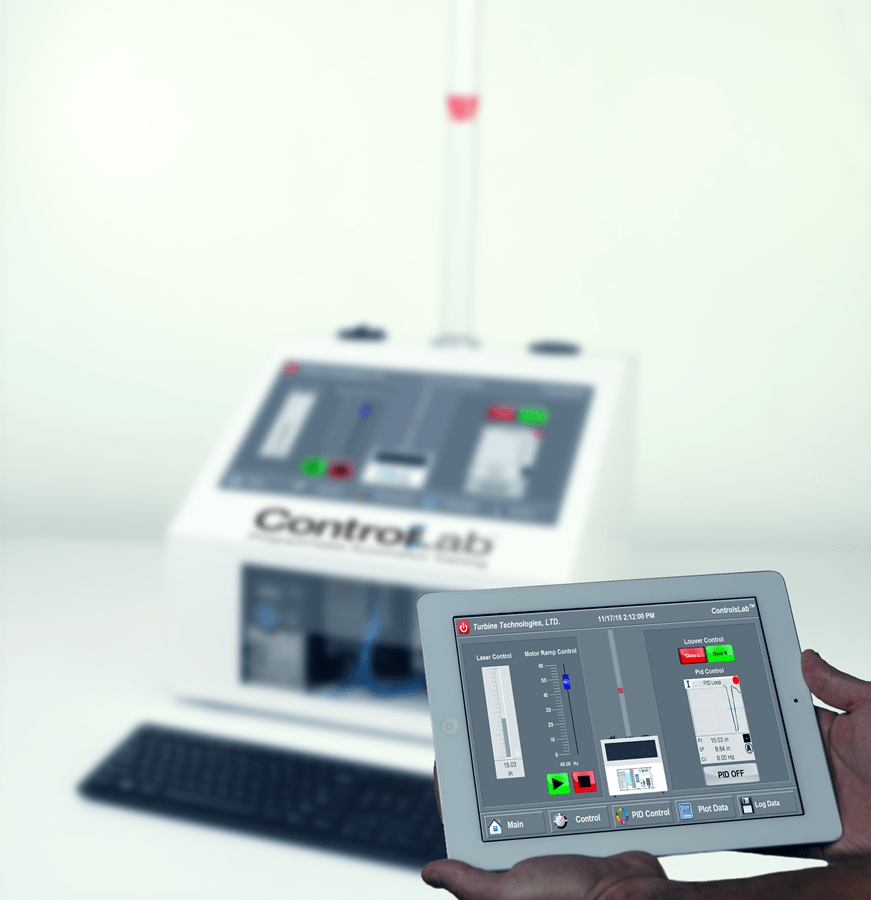

On-board, pre-configured Wi-Fi for remote & LAN operation with multiple classroom units

Wifi networkable connectivity

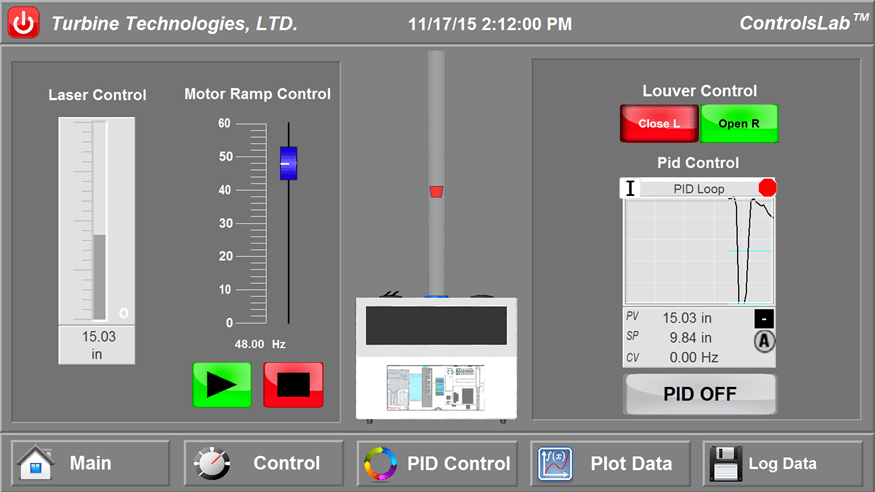

Human Machine Interface (HMI)  installed virtual instrument screens for out-of-the-box real-time monitoring of motor performance characteristics, along with manual & PIDE motor control.

Custom open-ended design of instrumentation & process automation scenarios made available by on-board Rockwell Factory Talk View ME V 8.0 & Studio 5000. Featuring a large format, 20-inch color touch screen

Comprehensive Free Curriculum Sample & Video series

Variable Frequency Drive (VFD)

Photoelectric Laser Sensor

3-Phase Air Blower

Dual Solenoid-Actuated Air Louvers

Convenient Wall Power & Data Connectivity

 Overview-Video





ControlsLab Curriculum- Video Series





























Click image to download curriculum sample.  The full curriculum is provided free of charge with the purchase of the ControlsLabTM system.




Video Curriculum Series



20
It's difficult to escape the influence of automated systems. Nearly every mechanical and electrical device we encounter on a daily basis has some elem...
