Jet Engine Cutaway Turbine with Custom Travel Case - Model Turbine Engine

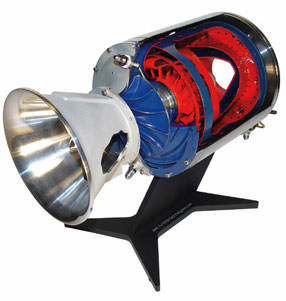

Cutaway of a gas turbine engine

Jet Engine Model | Cutaway Engine

Light enough to carry- strong enough to travel

The model jet engine SR-30 is now available in cut-away form. Your students will be able to follow a detailed flow path- from compressor inlet to thrust nozzle exit! The rotating assembly is mounted on ball bearings, which allows for clear and tactile demonstration of rotating and stationary component interaction.

The model jet engine SR-30 is comprised of an axial flow turbine stage consisting of a super alloy cast nozzle vane guide ring and a high nickel content bladed disk (blisk) turbine wheel. It features a reverse flow annular combusion chamber and 6 high-pressure, return flow fuel atomizer nozzles. Detailed views of bearing components (including oil galleyways), rotating and stationary parts and combustion chamber geometry are also made clearly visible.

The ATA approved flight case is lightweight yet extremely durable. This cut-away engine is designed to carry from classroom to classroom for years to come.

Jet Engine Cutaway Specifications


The ATA approved flight case is lightweight yet extremely durable
Dimensions
  • SR-30&trade Cutaway: 14.5 x 11.0 x 8.0 inches (37 x 28 x 20 cm)
  • Storage Case: 18.0 x 14.0 x 12.0 inches (46 x 36 x 31 cm)
Weight
  • SR-30™ Cutaway: 10 lbs (5 kg)
  • Storage Case: 23 lbs (10 kg)
  • Combined: 33 lbs (15 kg)
All Actual and Representative Components
  • Inlet Bell and Compressor Casing
  • Compressor Spinner / 2 Pole Generator for Engine RPM Sensing
  • Centrifugal Flow Compressor and Diffuser
  • Reverse Flow Annular Combustor with Laser Cut Air Flow Holes
  • Outer Combustor Mantle
  • Metal Spun Combustor Transition Liner
  • Nozzle / Vane Guide Ring
  • Bladed Axial Flow Turbine Disk with Main Engine Shaft
  • Containment Ring
  • Thrust Cone and Thrust Nozzle
  • Fuel Manifold, Fuel Nozzles, Fuel Control Unit and Engine Backplate
  • Compressor and Oil Seals and Main Bearings
  • Typical Air, Fuel and Oil Fittings with Internal Engine Fluid Galleyways
Storage Case
  • Air Transport Association Approved Delicate Equipment Case
  • Fully Lined and Latchable for Safe, Secure Transportation

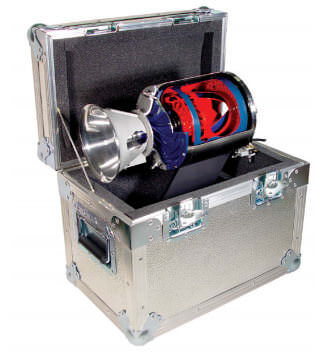

Case and Cutaway
